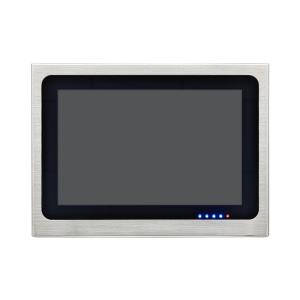

10" Stainless Steel Panel Capacitive Touch Monitor 12V DC Input Embedded Mount LCD Display For Marine/Kitchen/Vending

Brand Name : Sihovision

Model Number : SL101

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram,

Product Name : Stainless Steel Touch Monitor

Panel Size : 10.1 inch

Resolution : 1280*800

Aspect ratio : 16:10

Contrast ratio : 900:1

Luminance : 1000cd/m2

Touch type : Capacitive touch

Signal ports : HDMI

IP grade : FULL IP67

Application : Outdoor

Contact Now

10" Stainless Steel Panel Capacitive Touch Monitor 12V DC Input Embedded Mount LCD Display For Marine/Kitchen/Vending

Features

1. The whole machine is made of 316 stainless steel, IP67 waterproof, and the DC input interface is made of stainless steel
2. Built-in 25000mah rechargeable lithium battery, charging time 6-7 hours, working 8-9 hours when fully charged, standby 14-15 hours, and the front panel has a built-in power indicator
3. Built-in Bluetooth mouse and keyboard receiver
4. 10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), and the hardness reaches 7H
5. EETI touch control solution, normal touch when there are water droplets on the touch screen
6. Industrial-grade LCD screen, full viewing angle
7. Adopting industrial-grade components, 7x24 hours of work, support wide temperature operation -20-70℃

Specification

PC
CPU Intel® Core i5-7200U, 2 Cores, 4 Threads, Base 2.5 GHz, Turbo 3.1 GHz, Fanless
Chipset Chipset Kabylake
Memory 16G DDR4
Hard Drive Capacity 512G SSD
Hard Drive Optional SSD: 64G,128GB, 256GB, 512GB, 1TB, 2TB
HDD: 500GB,1TB, 2TB, 4TB
Graphics Intel(R) HD Graphics 620(128M)
Audio Audio Device Intel (R) display audio
Network Realtek Pcie GbE
Wireless Network Intel(R)WIFI Link 5300
Preinstalled OS Windows 10 Pro 64bit
External I/O Ports
Power input 1x IP67 DC12V
Other 1x IP67 Power on/off button
1x IP67 WIFI
LCD panel
Panel size 10.1"
Display active area 216.96(W)×135.6(H) mm / 8.542 in × 5.339 in
Resolution 1280*800
Aspect ratio 16:10
Brightness (cd/m²) 300 nits
Brightness control N/A
Contrast ratio 900:1
View angle 85°/85°/85°/85° (R/L/U/D)
Support color 16.7M
Backlight WLED, 50K hours
Touch panel
Touchscreen Type Projected Capacitive Touch (up to 10 points )
Surface hardness 7H
Surface treatment N/A
Luminousness ≥90%
IC Touch controller EETI 80
Available touch drivers Windows, Linux, Android, Mac, etc.
Touch options ( 5 wire resistive touch, IR touch optional)
Touch bonding Air bonding
Power Supply
Working voltage DC 12V
Power consumption 45W
Power adapter AC 100 ~ 240V input and DC +12V@7.5A MAX output, 90W
Build in battery
Battery capacity 25000mAh
Enclosure
Material Stainless Steel 316
Finish Wire drawing
Color Silver
Mounting VESA mount 75/100mm
IP rating Full panel IP67 waterproof
Cooling system Passive - Fanless
Operating Environment
Temperature Range Operating: -20 to 70°C, storage :-30 to 80°C
Relative humidity Up to 100% at all relevant temperatures, non-condensing
Vibration GB/T 2423.10-2019
Shock GB2423.5
EMC Class B
Packing Details
Product weight Net weight 5.36
Product dimension 280.5×2104.5×86mm
Packing info 1pcs/ctn 47×33×18cm 7kg
2pcs/ctn 48x34x32cm 15kg
Accessories Waterproof power supply, waterproof plug
Other
Warranty 1 year warranty
Certificates CE, FCC, RoHS



Applications


Restaurant

Self-service kiosk

Gas station

Payment terminal machine

Vehicle

Bus stop
