Ubuntu Embedded Panel PC RK3288 IP65 Waterproof 1024X600 Capacitive Touch

Product Categories
Shenzhen Shinho Electronic Technology Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

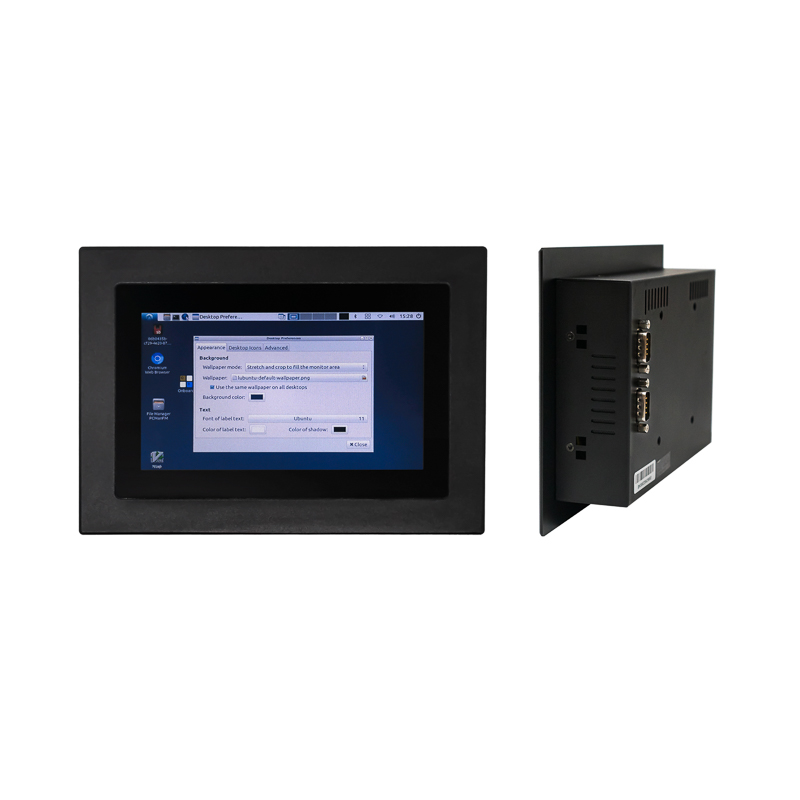

Ubuntu Embedded Panel PC RK3288 IP65 Waterproof 1024X600 Capacitive Touch

  • 1
  • 2
  • 3

Brand Name : Sihovision

Model Number : SC07

Certification : CE, FCC, RoHS

Place of Origin : China(Mainland)

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Product name : All-In-One PC Liunx

CPU : RK3288, 2G + 64G

Material : Aluminum Alloy

Touch type : Project Capacitive Touch (10 points)

View Angle : 80°/80°/80°/80° (R/L/U/D)

Surface hardness : 7H

Warranty : 12months

Brightness : 300 cd/m2

Contact Now

Embedded Panel Ubuntu PC RK3288 ip65 waterproof 1024*600 Capacitive Touch

Feature

1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof .
2. Industrial LCD panel, wide viewing angle.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance motherboard, 7x24 continuous operation.
5. Ultra-thin front bezel 3mm, ideal for embedded mounting.

Ubuntu Embedded Panel PC RK3288 IP65 Waterproof 1024X600 Capacitive TouchUbuntu Embedded Panel PC RK3288 IP65 Waterproof 1024X600 Capacitive Touch


Specification

Model:SC07
PC
CPURK3288 Quad-core Cortex-A17 up to 1.8GHz Mali-T764
Memory2G DDR3 (4G,8G optional)
Hard Drive Capacity64G SSD
Hard Drive OptionalSSD: 64G,128GB,256GB
HDD: 500GB,1TB
Wireless NetworkWIFI
I/O Interface4×USB, 1x OTG, 2 x COM RS232
1×HDMI/RJ45/Audio OUT/TF/MIC IN/POWER DC
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size7"
Resolution1024*600
Aspect ratio16:9
Support Color16.7M colors
Brightness300 cd/m²
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50 million times
Touch options( 5 wire resistive touch, IR touch optional)
Power Supply
External Power SupplyAC 100 - 240V
Working voltage12V
Power consumption≤45W
Enclosure
MaterialAluminum Alloy front bezel + High strength cold rolled steel back case
ColorSilver , Black, white, color can be customized
VESA mounting75×75mm/100×100mm
IP gradefront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight3.8kg
Gross weight4.3kg (2pcs/box)
Product Dimension157.7*222.17*46mm
Packing size30*30*24cm (2pcs/box)
AccessoriesPower adapter,embedded screws,user manual,warranty card
Other
Mounting (options)embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty



FAQ

1) Q:What is the minimum order quantity?
Refee: Qty: 1 unit. Different order quantity different price.

2) Q:What payment methods your company accept?
Refee: It’s usually wire transfer T/T. For partner relationship, we may consider other payment terms.

3) Q:How long is the warranty time for your products?
Refee: We provide 1 year warranty for all of our products and supply life-time maintenance.

4) Q:what's the shipment terms and delivery time of your company?
Refee: It depends on order quantity, shipping address and shipping methods.

5) Q:Do you give any discount ?
Refee: Yes, we are looking for long term business cooperation. We will always offer customers the reasonable price
based on the right solution.

6) Q:I would like to ask you if it's possible to have my logo on the product.
Refee: Logo printing service is available for mass order based on our MOQ.

7)Q:What kind of certification do you get?
Refee: We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
