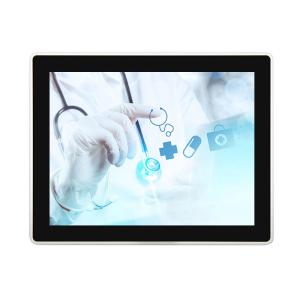

Medical Panel Pc 15 Inch J1900 2G 32G Windows OS Touch Screen Panel Pc
Features
- Industrial-grade protection, adapt to a variety of harsh environments.
- Independent research and development of the motherboard, the appearance ofindependent mold opening.
- Upgrade anti-interference internal layout, ESD up to:8KV/15KV-Anti-vibration and anti-radiation layout structure design.
- Obtained the medical industry test report EN60601-1:2006,GB9706.
Side dust-proof horn hole
Dust-proof netdesignonthesurfaceofthehornto improvesound penetration and dust-proof effect.
Reserve morescalability interfaces
Complete power supply/d atatransmission functions to meet theexpansion needsofavarietyofscenarios.
Technical Details
| Model:SC15 |
| PC |
| CPU | Inte Celeron J1900 quad-core, Option: Inte Core i3/i5/i7 |
| RAM | 2G DDR3(4G/8G/16G options) |
| Storage | 32G SSD(64/128/256/512G options) |
| System | Windows7/8/10,linux,Ubuntu |
| Chipset | Intel Bay trail soc Chipset |
| Network support | 10M/100M/1000M adaptive Ethemet, wifi,support3G/4G |
| wireless wifi | 24G(dual-band2.4/5G options) |
| Bluetooth | options |
| Speaker | dual speakers |
| Graphics card | Integrated HD graphic display core |
| Management Settings | Support poweron, remote wake-up, automatic reset function |
| IO interface | 1*USB3.0, 3*USB2.0, 1*COM, 1*LAN, 1*HD-MI, 1*VGA, 1*SIM, 1*Audio, 1*DC(12-36V) |
| LCD panel |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch optional) |
Application Environment
| Power Supply |
| External Power Supply | AC 100-240V |
| Working voltage | DC12V /5A, Support 12V-36V |
| Enclosure |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75*75mm/100*100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment |
| Temperature Range | Operating: -10 to 60°C, Storage: -20 to 70°C |
| Relative humidity | 20%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Other |
| Accessories | Clip accessories, power cord, power adapter, warranty card |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Products Show
Application
Hospital intelligent self-service, Smart medical cart, Mobile chest X-ray CT equipment, Automatic chemical analyzer, Computed Tomography, Digital subtraction angiography, digital radiography, Pathological diagnosis, rehabilitation training etc..
FAQ
Q: What is the Sihovision's advantage?
A:1.Professional embedded pc and thin client manufacturer for years with great experience.
2.Own factory and independent research, you can share directly with factory price.
3.Provide OEM/ODM service.
4. CE,FCC,ISO9001/14001 RoHs etc certificated,quality guaranteed.
Q:What is the time of delivery?
A: It depends on your quantity and production schedule.Usually,1-3 working days for sample order, 10-20 working days for mass production after receiving payment.
Q:How is your warranty policy for goods?
A:We focus on after-services,and all our products share 1 years warranty.second year and third year, we provide free repair, but it will be charge for parts change.
