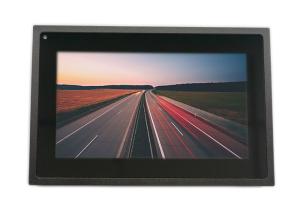

Industrial High Brightness Monitor 1000 Nits Multi - Points PCAP Touch 7 Inch

Name: Industrial High Brightness Monitor 1000 Nits Multi Points PCAP Touch 7 Inch
Brand: Sihovision
Price: 1 USD

China Industrial High Brightness Monitor 1000 Nits Multi - Points PCAP Touch 7 Inch factory

Brand Name : Sihovision

Model Number : SL07

Certification : CE,FCC, RoHS

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, MoneyGram

Product name : 7 inch embedded monitors

Products status : Stock

Resolution : 1024*600

Screen size : 7"

Interface : VGA,HDMI

Brightness : 1000+ nits

Touchscreen Type : Project Capacitive Touch (10 points )

IP Grade : front panel IP65 waterproof

Viewing angle : 75°/75°/70°/75° (R/L/U/D)

Material : Aluminum Alloy Frame

Power supply : DC 12V(AC 100-240V 50/60Hz)

Widescreen : No

Panel type : TFT

Color : Black

Application : embedded/desktop/wall mount

Warranty : 1 Years

Contact Now

7 inch Industrial monitors -20 to 70°C 1000 nits multi-points PCAP touch embedded monitor with auto dimming

Features:

1. Robust and durable aluminium alloy bezel+ High strength cold rolled steel back enclosure, dustproof and shockproof.
2. Front panel IP65 waterproof.
3. Industrial LCD panel, wide operating temperature: -20 to 70°C, storage: -30 to 80°C.
4.1000 nits high brightness, sunlight readable.
5. With light sensor for auto dimming.
6. Multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
7. High performance mainboard, 7x24 continuous operation.

Specification

Model:SL07
LCD panel
Panel size	7"
Resolution	1024*600
Aspect ratio	16:9
Support Color	16.7M colors
Brightness (cd/m²)	1000 nits, sunlight readable
Brightness	with light sensor, to adjust brightness automatically
Contrast ratio	800:1
View angle	75°/75°/70°/75° (R/L/U/D)
Touch panel
Touchscreen Type	Project Capacitive Touch (10 points )
Surface Hardness	7H
Luminousness	90%
Touch Interface	USB
Touch response time	2ms
Working Life	>50 million times
Touch options	(4 wires resistive touch, IR touch optional)
Singal Ports
VGA	1×VGA
HDMI	1×HDMI
DVI	optional
AV	optional
Audio in/out	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12V
Power consumption	≤10W
Enclosure
Appearance	Flat panel, demountable open frame for mounting
Material	aluminium alloy bezel+High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA mounting	75×75mm
IP Grade	front panel IP65 waterproof
Operating Environment
Temperature Range	operating: -20 to 70°C, storage :-30 to 80°C
Relative humidity	operating: 10% to 90% , storage :5% to 90%
Packing Details
Net weight	1.85kg
Gross weight	2.5kg
Product Dimension	19.11×12.66×3.07 cm
Packing size	37×28×10 cm
Accessories	Power adapter, HDMI /VGAcable, USB touch cable
Other
Mounting	Embedded screws
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

Package

Certifications

Industrial High Brightness Monitor 1000 Nits Multi - Points PCAP Touch 7 Inch

OEM & ODM

Industrial High Brightness Monitor 1000 Nits Multi - Points PCAP Touch 7 Inch

About Shinho Electronic
Industrial High Brightness Monitor 1000 Nits Multi - Points PCAP Touch 7 Inch

Application

Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
