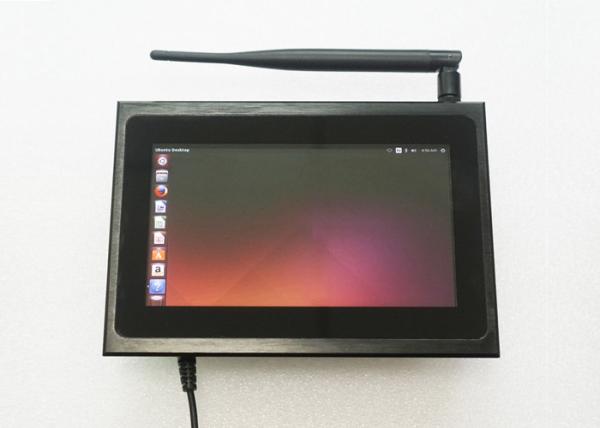

10 Points Capacitive Industrial Touch Panel PC 7'' Support 9-24V Wide Voltage

Product Categories
Shenzhen Shinho Electronic Technology Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

10 Points Capacitive Industrial Touch Panel PC 7'' Support 9-24V Wide Voltage

Brand Name : Sihovision

Model Number : SC07

Certification : CE, FCC, RoHS

Place of Origin : China(Mainland)

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Product name : 7 inch capacitive touch panel pc

Type : panel pc

Products status : Stock

Cpu : J1900/i3/i5

Memory : 2GB/4GB/8GB

Storage : 32G/64G/128G/256G SSD

Resolution : 1024*600

Brightness : 400+ cd/m2

Interface : COM, VGA, USB, HDMI

Response time : 5ms

View Angle : 80°/80°/80°/80° (R/L/U/D)

Lan : 2x10/100/1000Mbps RJ45 LAN

Wifi : 802.11a/b/g/n

Material : Aluminium alloy

Color : Black

Touch screen : Projected Capacitive Multi Touch

Operating system : Windows 7/8/10/linux/Ubuntu

Power supply : DC 12V(AC 100-240V 50/60Hz)

Warranty : 12months

Contact Now

7 inch 10 points capacitive touchscreen panel pc, support 9 to 24V wide voltage


Features


1. Front bezel aluminum alloy brushed metal craft+ aluminum alloy heat sink,shakeproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10-points capacitive touch screen , cover with tempered glass for vandal proof
4. High performance motherboard, 7x24 continuous operation.
5. 9-24V wide voltage support.

Specification

Model:SC07
PC
CPU Intel® Celeron J1900 , quad core , 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3 (4G optional)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI optional
I/O Interface 3×USB 2.0,1×USB 3.0, 4 x COM RS232
1×VGA/HDMI/2×RJ45/Audio OUT/MIC IN/POWER DC
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 7"
Resolution 1024*600
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 400+
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 10 points capacitive touch
Touch Interface USB (RS232 optional)
Touch response time <8ms
Luminousness 90%
Surface Hardness 3H
Working Life >35 million times
Touch options ( capacitive touch, IR touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage 9-24V wide voltage
Power consumption ≤45W
Enclosure
Material Aluminum Alloy bezel+High strength cold rolled steel back case
Color Silver , Black, white, color can be customized
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 2.2kg
Gross weight 2.5kg
Product Dimension 19.5*13.7*4cm
Packing size 40*33*15cm
Accessories Power adapter,embedded screws,driver CD,touch pen
Other
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Certificates CE,FCC,RoHS
Warranty 1 year warranty

Drawing

10 Points Capacitive Industrial Touch Panel PC 7'' Support 9-24V Wide Voltage

Package

10 Points Capacitive Industrial Touch Panel PC 7'' Support 9-24V Wide Voltage

Certifications

10 Points Capacitive Industrial Touch Panel PC 7'' Support 9-24V Wide Voltage

OEM & ODM

10 Points Capacitive Industrial Touch Panel PC 7'' Support 9-24V Wide Voltage

About Shinho Electronic
10 Points Capacitive Industrial Touch Panel PC 7'' Support 9-24V Wide Voltage


Application

10 Points Capacitive Industrial Touch Panel PC 7'' Support 9-24V Wide Voltage
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
