LCD Waterproof Touch Monitor 15.6 Inch Full IP67 1920*1080 With 10m Cable Dimmer

Name: LCD Waterproof Touch Monitor 156 Inch Full IP67 19201080 With 10m Cable Dimmer
Brand: SHINHO
Price: 1 USD

China LCD Waterproof Touch Monitor 15.6 Inch Full IP67 1920*1080 With 10m Cable Dimmer factory

Brand Name : SHINHO

Model Number : SL156W IP67

Certification : CE, FCC, RoHS

Place of Origin : China(Mainland)

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Product name : 15.6 Inch Waterproof Monitor

Resolution : 1920*1080

Brightness : 1000nits, sunlight readable

Brightness Control : With 10m Cable manual adjust

Vandalproof : With 2mm tempered glass

Temperature Range : Operating: 0 to 70°C, storage: -30 to 70°C

Vesa Mount : 100*100mm

Warranty : 12months

Contact Now

15.6 Inch Full IP67 Waterproof LCD Industrial Monitor With 10m Cable Dimmer

Features

1. FHD Resolution 1920*1080

2. Full IP67 waterproof connetor, Sealed I/O with cable set included.
2. 15.6'' Industrial LCD panel, high brightness 1000 nits, sunlight readable. Cover with 2MM tempered glass for vandalproof.
3. Wide Temperature Range: operating: 0 to 70°C, storage: -30 to 70°C.
4. With Dimmer switch via 10m cable. can turn from 0 to 100%.
5. High performance mainboard, 7x24 continuous operation.

Specification

Model:SL156W IP67
LCD panel
Panel size	15.6"
Resolution	1920*1080
Aspect ratio	16:9
Support Color	16.7M colors
Brightness (cd/m²)	1000 nits, sunlight readable
Contrast ratio	800:1
View angle	80°/80°/80°/65° (R/L/U/D)
Singal Ports
VGA	1xVGA
HDMI	1xHDMI
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply	AC 100-240V
Working voltage	DC 12V
Power consumption	25 W
Enclosure
Material	Aluminium alloy front bezel + High strength cold rolled steel back case
Color	Black, white, Silver, color can be customized
VESA mounting	100x100 mm
IP-grade	Full IP67 waterproof
Operating Environment
Temperature Range	Operating: 0 to 70°C, storage: -30 to 70°C
Relative humidity	Operating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight	4kg
Gross weight	5kg
Product Dimension	41×25.7×5.6cm
Packing size	53x46x18 cm
Accessories	Power adapter, IP67 waterproof power cord, IP67 waterproof VGA/HDMI cable
Customization
Dimmer	With Dimmer switch via 10m cable
Other
Mounting (options)	1) Wall brackets for wall-mounting, VESA 100×100 mm
Mounting (options)	2) Stable metal holder to support the monitor
Warranty	1 year warranty

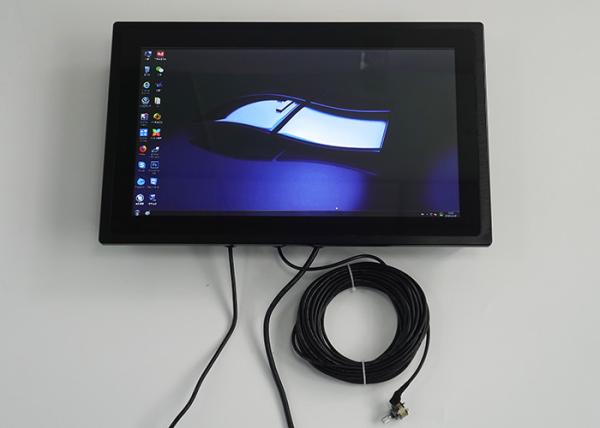

Pictures

LCD Waterproof Touch Monitor 15.6 Inch Full IP67 1920*1080 With 10m Cable Dimmer

Drawing

LCD Waterproof Touch Monitor 15.6 Inch Full IP67 1920*1080 With 10m Cable Dimmer

Application

Chicken Slaughter

Boat installation

Ticket machine

Voting machine

Control Cabinet

Golfball dispensing machine

Remote authentication

Parking lot self-service payment machine
