7 Inch 1000 Nits Touchscreen Monitor With Capacitive Touch Front IP65 Waterproof
Features
1. Robust and durable aluminium alloy bezel+ High strength cold rolled steel back enclosure, dustproof and shockproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility.
6.1000 nits high brightness,sunlight readable.
7. Front panel IP65 waterproof.
8. EETI touch controller
Application
Outdoor kiosk
Gas station
out fare turnstile gates
parking management system
vending machine
This 7 inch 1000 nits touchscreen monitor with 10 point capacitive touch,sunlight readalbe,front panel IP65 waterproof, wide working temperature , ideal for using in semi-outdoor or outdoor kiosk.
For using indoor will also be OK,if use indoor,we will produce it with normal brightness 400 nits.
Specification
| Model:SL07 |
| LCD panel |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Contrast ratio | 400:1 |
| View angle | 85°/85°/80°/80° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 wires resistive touch, IR touch optional) |
| Singal Ports |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 24V |
| Power consumption | ≤10W |
| Enclosure |
| Appearance | Flat panel , demountable open frame for mounting |
| Material | aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm |
| IP Grade | front panel IP65 waterproof |
| Operating Environment |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details |
| Net weight | 1.85kg |
| Gross weight | 2.5kg |
| Product Dimension | 19.1×12.8×3.4 cm |
| Packing size | 37×28×10 cm |
| Accessories | Power adapter, HDMI /VGAcable, USB touch cable |
| Other |
| Mounting | Embedded screws |
| wall mounting brackets (optional) |
| desk stand holder (optional) |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

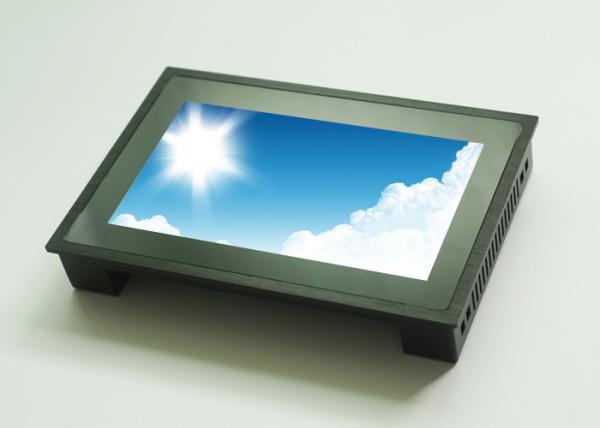

Pictures
Drawing
