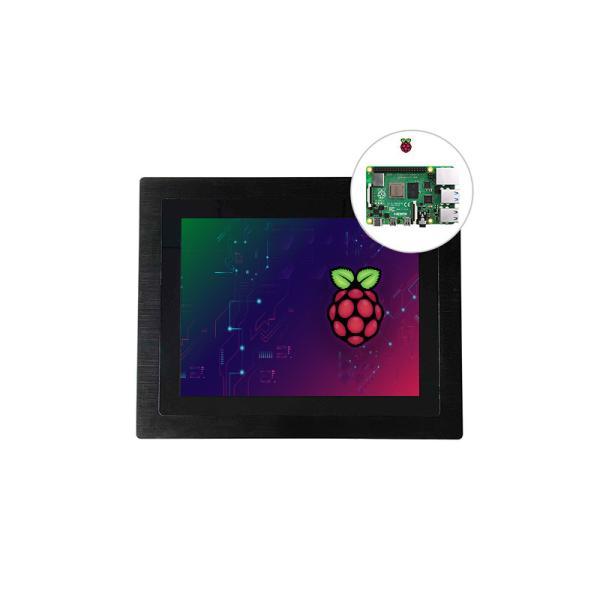

Raspberry Pi Tablet PC 45W 12in Industrial LCD Panel 1000nits LCD Touch Monitor

Brand Name : Sihovision

Model Number : SL12

Certification : CE,FCC, RoHS

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, MoneyGram

Product name : Built In A Raspberry Pi 12 inch touchscreen

Products status : Stock

Resolution : 1024*768

Screen size : 12"

Interface : VGA, DVI, HDMI

Brightness : 1000 nits

Touchscreen Type : Project Capacitive Touch (10 points )

IP Grade : front panel IP65 waterproof

Viewing angle : 80°/80°/80°/80° (R/L/U/D)

Material : Aluminum Alloy Frame

Power supply : DC 12V(AC 100-240V 50/60Hz)

Color : Black

Application : embedded/desktop/wall mount

Warranty : 1 Years

Contact Now

Built In A Raspberry Pi 4b 12" Industrial LCD Panel 1000nits Touch Monitor

Key Features:

1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof .
2. Industrial LCD panel, higt brightness 1000nits sunlight readable.
3. Adopt multi-points PCAP touch panel,high sensitive and fast-response.
4. Built in a raspberry pi 4b (2xspeakers , 4xUSB, 40pins, SD card slot )
5. Ultra-thin front bezel 3mm, ideal for embedded mounting.



Specification

Model:SL121P
Raspberry pi
processor raspberry pi 4b, 64bits, 1.5GHz, quad core
Memory 4GB
WIFI 802.11n wireless 2.4GHz/5GHz double frequency WIFI
Bluetooth Bluetooth 5.0 BLE
Network Gigabit Ethernet port
USB port 2xUSB3.0, 2xUSB2.0
GPIO port 40 pins
Video/Audio port 2x micro HDMI, support 4Kp60, 1xMIPI DSI, 1xMIPI CSI, stereo audie&composite video ports
Multimedia Support H.265:4Kp60 decoding, H.264:1080p60 decoding, 1080p30 coding, OpenGL ES:3.0 graph
Resolution support 4K, support double-screen display
SD card support Micro SD
Power supply USB type C, 5V 3A
POE optional
LCD panel
Panel size 12"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 1000
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points)
Touch Interface USB (RS232 optional)
Touch response time 2ms
Luminousness 90%
Surface Hardness 7H
Working life >50 million times
Touch options ( 5 wires resistive touch, IR touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy
Color Silver , Black, white, color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 3.1kg
Gross weight 4kg
Product Dimension 33.6×27.4×5.5 cm
Packing size 40×35×15 cm
Accessories Power adapter,embedded screws,SD card reader, VGA cable, HDMI cable, USB cable
Other
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty

Raspberry Pi Tablet PC 45W 12in Industrial LCD Panel 1000nits LCD Touch Monitor
