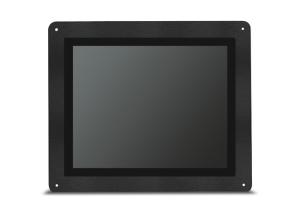

Panel Mount 1280x1024 Capacitive Touch Pc 10 Points Intel J1900

Brand Name : Sihovision

Model Number : SC17

Certification : CE , FCC , RoHS

Place of Origin : Shenzhen , China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Paypal, L/C, D/A , D/P, Western Union, MoneyGram

Product name : Panel Mount Tablet

CPU : Intel® Celeron J1900

RAM : 2GB DDR3

Hard disk : 32GB SSD

Touchscreen Type : With Capacitive Touch Screen

IP Grade : Front panel IP65 waterproof

I/O : 4xUSB, 2xCOM, 1xRJ45, VGA, HDMI

Resolution : 1280*1024

Contact Now

Intel J1900 Panel Mount 1280*1024 Capacitive Touch 10 Points Tablet Pc

Features

1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof .
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response
4. High performance motherboard, 7x24 continuous operation.
5. with mounting holes on the bezel,ideal for rack mount.

Specification

Model:SC17
PC
CPUIntel® Celeron J1900 , quad core , 2.0GHz, fanless
ChipsetIntel ValleyView SSA-CUnit
Memory2G DDR3, ( Max. 8G)
Hard Drive Capacity32G SSD
Hard Drive OptionalSSD: 64G,128GB,256GB
HDD: 500GB,1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI
I/O Interface2×USB 2.0,2×USB 3.0, 2 x COM RS232
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size17"
Resolution1280*1024
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)400+
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50 million times
Touch options( 5 wire resistive touch, IR touch optional)
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
MaterialAluminum Alloy
ColorSilver , Black, white, color can be customized
VESA mounting75×75mm/100×100mm
IP gradefront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight6.5kg
Gross weight7kg
Product DimensionTBD
Packing size53×47×18 cm
AccessoriesPower adapter,embedded screws,user manual,warranty card
Other
Mounting (options)rack mount
wall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty


Applications
Packaging inspection machine
Access control system
ATM
Traffic control system
Vending machine
Industrial control stystem
Voting equipment
POS machine
